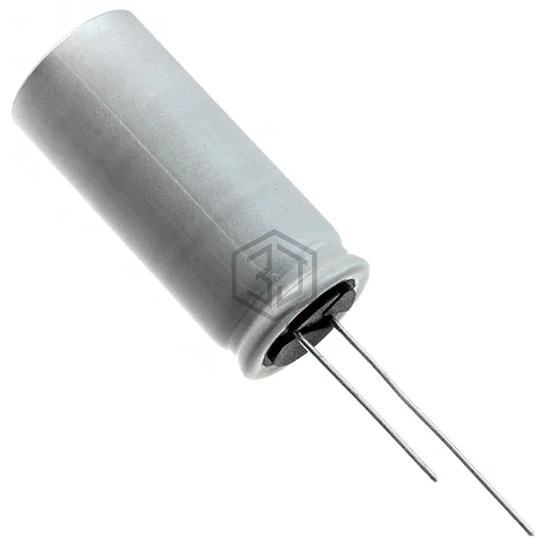

CAP ALUM 560UF 20% 100V RADIAL
EGPD101ELL561MU40H is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 135°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 5,536
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 34mOhm @ 100kHz |
| Lifetime @ Temp. | 2000 Hrs @ 135°C |
| Operating Temperature | -40°C ~ 135°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 2.165 A @ 120 Hz |
| Ripple Current @ High Frequency | 4.33 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.571" Dia (14.50mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
EGPD101ELL561MU40H is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGPD101ELL561ML35H | United Chemi-Con | CAP ALUM 560UF 20% 100V RADIAL | 98% | View |
| EGPD101ELL621MM30H | United Chemi-Con | CAP ALUM 620UF 20% 100V RADIAL | 91% | View |
| EGPD800ELL621MK35H | United Chemi-Con | CAP ALUM 620UF 20% 80V RADIAL | 83% | View |
| UBY1K621MHL6TN | Nichicon | CAP ALUM 620UF 20% 80V RADIAL | 60% | View |
| EGPD630ELL561MK25H | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 60% | View |
| UBY1K621MHL6 | Nichicon | CAP ALUM 620UF 20% 80V RADIAL | 60% | View |
Submit your RFQ for EGPD101ELL561MU40H and get a quote within 24 hours.
