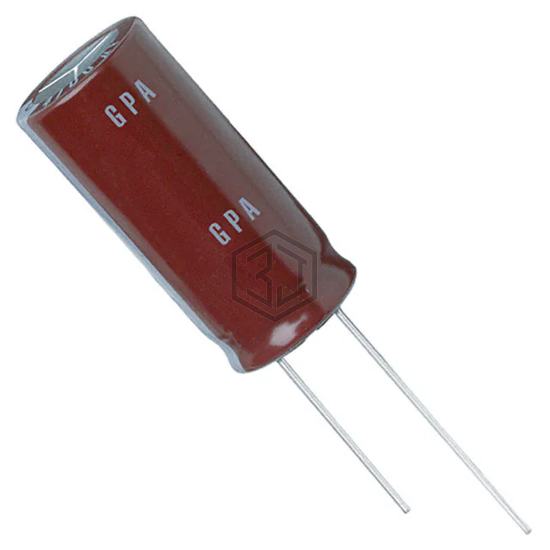

CAP ALUM 560UF 20% 80V RADIAL
EGPA800ELL561MM25S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 80V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 80 V, package / case Radial, Can.
In Stock: 2,718
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | 49mOhm @ 100kHz |
| Lifetime @ Temp. | 3000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.14 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.28 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.709" Dia (18.00mm) |
| Height - Seated (Max) | 1.043" (26.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UBY1J561MHL1TO | Nichicon | CAP ALUM 560UF 20% 63V RADIAL | 88% | View |
| 510DX567M063EN5D | Vishay Sprague | CAP ALUM 560UF 20% 63V RADIAL | 85% | View |
| B41689A8567Q001 | EPCOS - TDK Electronics | CAP ALUM 560UF 63V AXIAL | 68% | View |
| B41689K8567Q001 | EPCOS - TDK Electronics | CAP ALUM 560UF 63V AXIAL | 67% | View |
| 600D567G015DL4 | Vishay Sprague | CAP ALUM 560UF 150V AXIAL | 60% | View |
| B41789A7567Q001 | EPCOS - TDK Electronics | CAP ALUM 560UF 40V RADIAL | 58% | View |
Submit your RFQ for EGPA800ELL561MM25S and get a quote within 24 hours.
