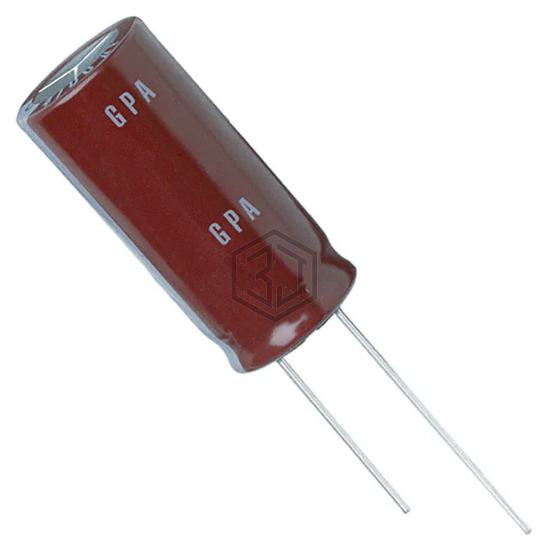

CAP ALUM 560UF 20% 100V RADIAL
EGPA101ELL561ML40S is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 560UF 20% 100V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, voltage - rated 100 V, package / case Radial, Can.
In Stock: 2,107
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 46mOhm @ 100kHz |
| Lifetime @ Temp. | 5000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Ripple Current @ Low Frequency | 1.35 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.634" (41.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXF101ELL561MM30S | United Chemi-Con | CAP ALUM 560UF 20% 100V RAD TH | 98% | View |
| EGPD630ELL561MK25H | United Chemi-Con | CAP ALUM 560UF 20% 63V RADIAL | 83% | View |
| EGPD101ELL561ML35H | United Chemi-Con | CAP ALUM 560UF 20% 100V RADIAL | 79% | View |
| EGQB350ELL561MK20H | United Chemi-Con | CAP ALUM 560UF 20% 35V RADIAL | 70% | View |
| MAL214638561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 63V RADIAL | 68% | View |
| MAL224668561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 63V RADIAL | 67% | View |
