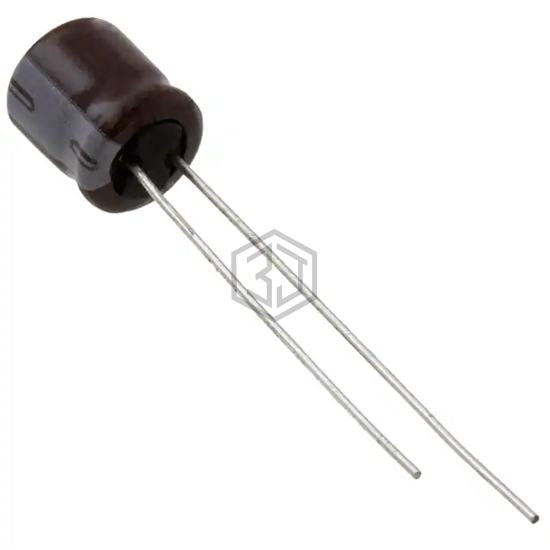

CAP ALUM 22UF 20% 10V RADIAL
EFL-100ELL220MD05D is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 22UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 3,246
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | 37 mA @ 100 kHz |
| Impedance | 5.4 Ohms |
| Lead Spacing | 0.059" (1.50mm) |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
EFL-100ELL220MD05D is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL211621229E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM RADIAL | 100% | View |
| UMT1A220MDD | Nichicon | CAP ALUM 22UF 20% 10V RADIAL | 83% | View |
| UTS0J220MDD | Nichicon | CAP ALUM 22UF 20% 6.3V RADIAL | 77% | View |
| UKL1A220MDDANATD | Nichicon | CAP ALUM 22UF 20% 10V RADIAL | 64% | View |
| 16MH522MEFC5X5 | Rubycon | CAP ALUM 22UF 20% 16V RADIAL | 57% | View |
| 50RX3022M5X11 | Rubycon | CAP ALUM 22UF 20% 50V RADIAL | 56% | View |
Submit your RFQ for EFL-100ELL220MD05D and get a quote within 24 hours.
