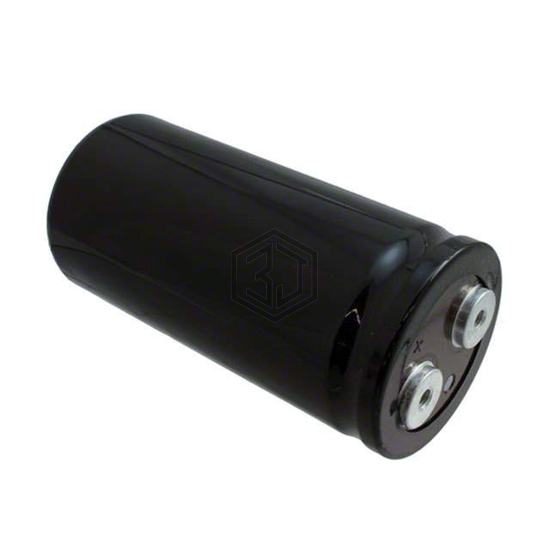

CAP ALUM 5600UF 20% 500V SCREW
E37X501CPN562MFE3M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 5600UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,120
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 19mOhm @ 120Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 18.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 42.441 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 5.669" (144.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37X501CPN562MFE3M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43741B6568M000 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 500V SCREW | 99% | View |
| MAL210237562E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 5600UF 20% 450V SCREW | 93% | View |
| B43743B4568M000 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 350V SCREW | 81% | View |
| ALS80A562NP450 | KEMET | CAP ALUM 5600UF 20% 450V SCREW | 76% | View |
| LNC2V562MTEG | Nichicon | CAP ALUM 5600UF 20% 350V SCREW | 76% | View |
| ALS71C562LM350 | KEMET | CAP ALUM 5600UF 20% 350V SCREW | 69% | View |
Submit your RFQ for E37X501CPN562MFE3M and get a quote within 24 hours.
