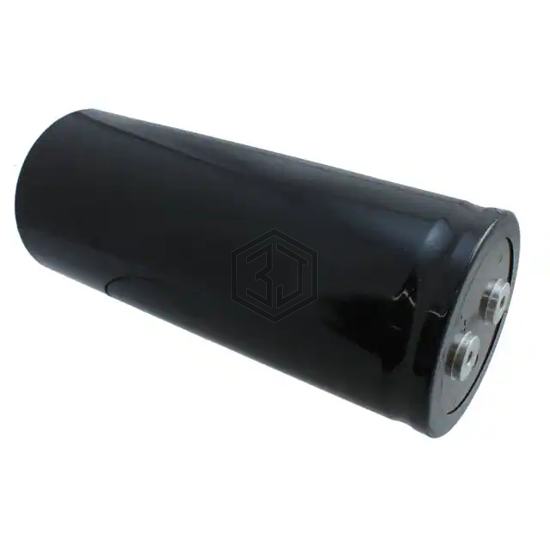

CAP ALUM 8200UF 20% 420V SCREW
E37X421CPN822MEJ1M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 8200UF 20% 420V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 420 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,982
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 14mOhm @ 120Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 22.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 42.441 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 7.165" (182.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37X421CPN822MEJ1M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37X451CPN822MEM9U | United Chemi-Con | CAP ALUM 8200UF 20% 450V SCREW | 95% | View |
| LNC2G822MTEJ | Nichicon | CAP ALUM 8200UF 20% 400V SCREW | 91% | View |
| LNU2W822MSEHBB | Nichicon | CAP ALUM 8200UF 20% 450V SCREW | 90% | View |
| LNY2G822MSEHBN | Nichicon | CAP ALUM 8200UF 20% 400V SCREW | 89% | View |
| ALS71H822QH400 | KEMET | CAP ALUM 8200UF 20% 400V SCREW | 83% | View |
| ALS80H822QW500 | KEMET | CAP ALUM 8200UF 20% 500V SCREW | 83% | View |
Submit your RFQ for E37X421CPN822MEJ1M and get a quote within 24 hours.
