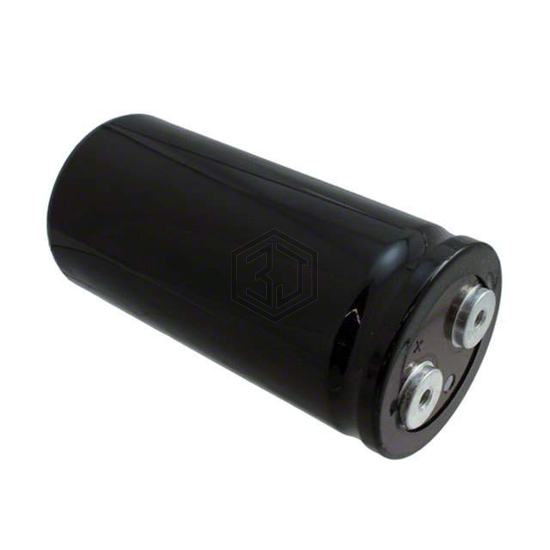

CAP ALUM 3900UF 20% 420V SCREW
E37X421CPN392MDE3M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 420V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 420 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,791
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 420 V |
| ESR (Equivalent Series Resistance) | 26mOhm @ 120Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13.4 A @ 120 Hz |
| Ripple Current @ High Frequency | 18.894 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.669" (144.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37X421CPN392MDE3M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37F421CPN392MDB7M | United Chemi-Con | CAP ALUM 3900UF 20% 420V SCREW | 99% | View |
| LNY2G392MSEF | Nichicon | CAP ALUM 3900UF 20% 400V SCREW | 97% | View |
| E33D401CPN392MEA5Q | Chemi-Con | SCREW TERMINAL CAPCITOR | 97% | View |
| LNU2W392MTEH | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 91% | View |
| B43743B9398M000 | EPCOS - TDK Electronics | CAP ALUM 3900UF 20% 400V SCREW | 90% | View |
| DCMC392T450DC2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 450V SCREW | 82% | View |
Submit your RFQ for E37X421CPN392MDE3M and get a quote within 24 hours.
