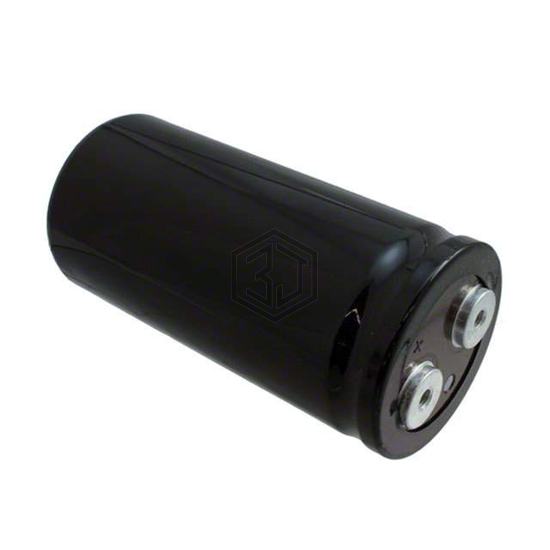

CAP ALUM 3900UF 20% 400V SCREW
E37X401CPN392MDE3M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,998
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 24mOhm @ 120Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 42.441 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 5.669" (144.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37X401CPN392MDE3M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNU2G392MSEG | Nichicon | CAP ALUM 3900UF 20% 400V SCREW | 82% | View |
| LNU2G392MSEGBB | Nichicon | CAP ALUM 3900UF 20% 400V SCREW | 82% | View |
| MAL250036392E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 3900UF 20% 400V SCREW | 81% | View |
| LNC2V392MTEG | Nichicon | CAP ALUM 3900UF 20% 350V SCREW | 78% | View |
| ALS71C392NF550 | KEMET | CAP ALUM 3900UF 20% 550V SCREW | 70% | View |
| ALS70A392NF550 | KEMET | CAP ALUM 3900UF 20% 550V SCREW | 70% | View |
Submit your RFQ for E37X401CPN392MDE3M and get a quote within 24 hours.
