CAP ALUM 15000UF 20% 400V SCREW

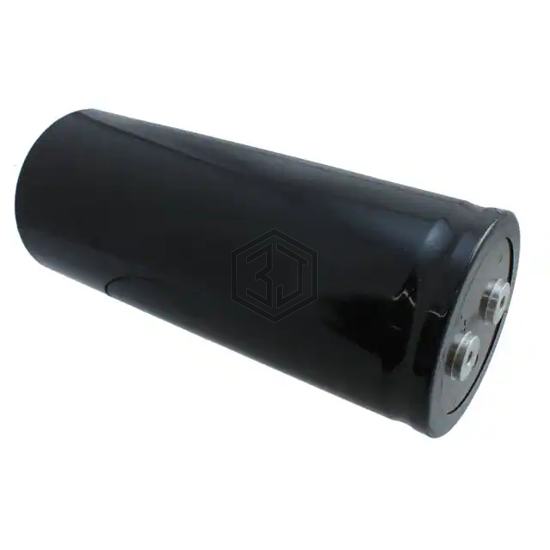

E37X401CPN153MFM9M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 15000UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,844
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 7mOhm @ 120Hz |
| Lifetime @ Temp. | 15000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 35.6 A @ 120 Hz |
| Ripple Current @ High Frequency | 50.196 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 8.661" (220.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37X401CPN153MFM9M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37L401CPN153MFK0U | United Chemi-Con | CAP ALUM 15000UF 20% 400V SCREW | 99% | View |
| B43458A9159M003 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 400V SCREW | 99% | View |
| E37L351CPN153MFK0U | United Chemi-Con | CAP ALUM 15000UF 20% 350V SCREW | 95% | View |
| B43455A4159M3 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 350V SCREW | 85% | View |
| MAL250077153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 450V SCREW | 82% | View |
| ALS80P153NT350 | KEMET | CAP ALUM 15000UF 20% 350V SCREW | 66% | View |
Submit your RFQ for E37X401CPN153MFM9M and get a quote within 24 hours.
