CAP ALUM 8200UF 20% 450V SCREW

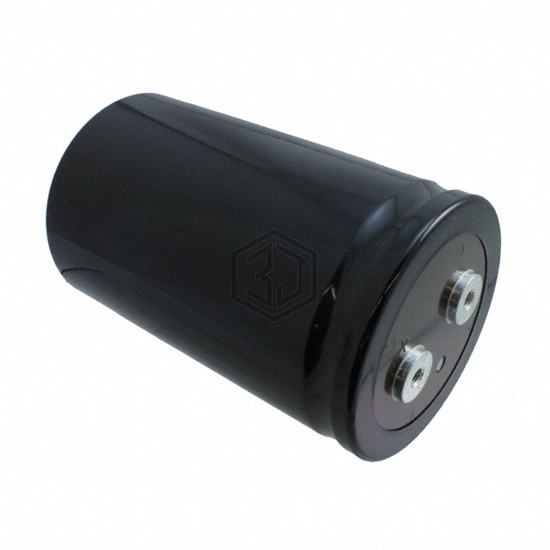

E37L451CPN822MFE3M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 8200UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,935
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 13mOhm @ 120Hz |
| Lifetime @ Temp. | 10000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23.3 A @ 120 Hz |
| Ripple Current @ High Frequency | 32.853 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 5.669" (144.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37L451CPN822MFE3M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ELXU451LGC822MEF5U | Chemi-Con | SCREW TERMINAL CAPCITOR | 100% | View |
| E37L451CPN822MFF5U | United Chemi-Con | CAP ALUM 8200UF 20% 450V SCREW | 99% | View |
| E37X421CPN822MFE3M | United Chemi-Con | CAP ALUM 8200UF 20% 420V SCREW | 96% | View |
| E37F401CPN822MEE3U | United Chemi-Con | CAP ALUM 8200UF 20% 400V SCREW | 94% | View |
| LNC2H822MSEJ | Nichicon | CAP ALUM 8200UF 20% 500V SCREW | 84% | View |
| ALS70C822NF350 | KEMET | CAP ALUM 8200UF 20% 350V SCREW | 76% | View |
