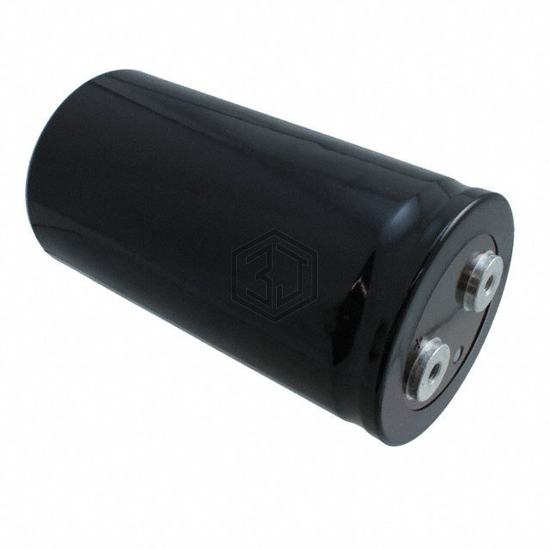

CAP ALUM 5600UF 20% 500V SCREW
E37F501CPN562MEE3M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 5600UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,947
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 20mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.1 A @ 120 Hz |
| Ripple Current @ High Frequency | 24.111 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.252" (31.80mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 5.669" (144.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37F501CPN562MEE3M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS70A562QM550 | KEMET | CAP ALUM 5600UF 20% 550V SCREW | 95% | View |
| LNY2G562MSEG | Nichicon | CAP ALUM 5600UF 20% 400V SCREW | 92% | View |
| ALS80C562QH450 | KEMET | CAP ALUM 5600UF 20% 450V SCREW | 92% | View |
| ALS80P562NP450 | KEMET | CAP ALUM 5600UF 20% 450V SCREW | 91% | View |
| LNU2W562MSEJBB | Nichicon | CAP ALUM 5600UF 20% 450V SCREW | 90% | View |
| E36D451LPN562TEE3U | United Chemi-Con | CAP ALUM 5600UF 450V SCREW | 86% | View |
Submit your RFQ for E37F501CPN562MEE3M and get a quote within 24 hours.
