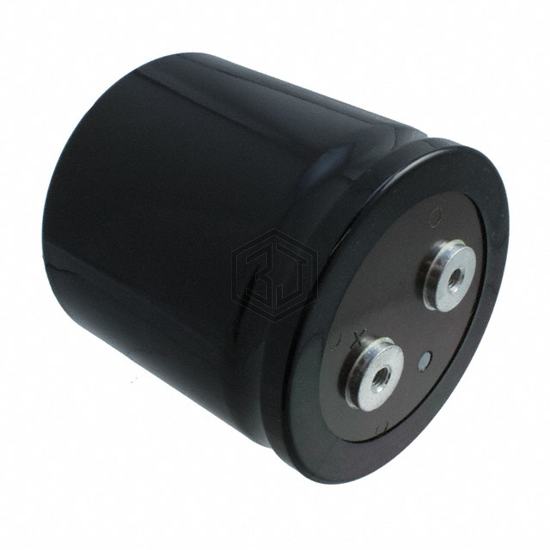

CAP ALUM 3900UF 20% 500V SCREW
E37F501CPN392MF92M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,561
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 14.2 A @ 120 Hz |
| Ripple Current @ High Frequency | 20.022 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 3.661" (93.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37F501CPN392MF92M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNU2H392MSEJBB | Nichicon | CAP ALUM 3900UF 20% 500V SCREW | 93% | View |
| LNC2W392MSEGBN | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 88% | View |
| LNC2W392MTEH | Nichicon | CAP ALUM 3900UF 20% 450V SCREW | 88% | View |
| DCMC392M400CD5F | Cornell Dubilier Electronics (CDE) | CAP ALUM 3900UF 20% 400V SCREW | 86% | View |
| LNC2G392MSEG | Nichicon | CAP ALUM 3900UF 20% 400V SCREW | 86% | View |
| E37F351HPN392MCD0U | United Chemi-Con | CAP ALUM 3900UF 20% 350V SCREW | 82% | View |
Submit your RFQ for E37F501CPN392MF92M and get a quote within 24 hours.
