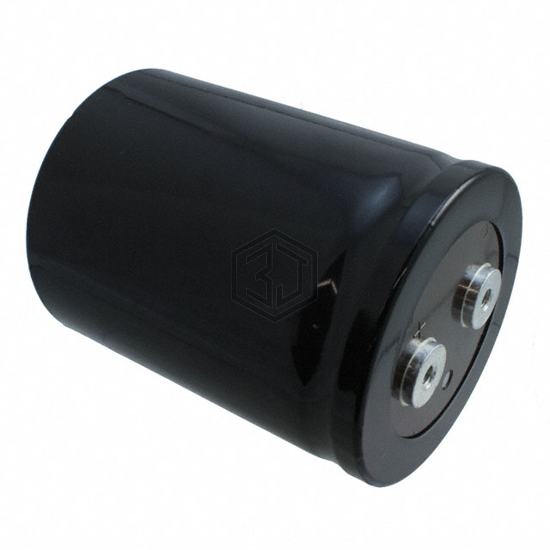

CAP ALUM 8200UF 20% 400V SCREW
E37F401CPN822MFB7M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 8200UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,165
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 8200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 11mOhm @ 120Hz |
| Lifetime @ Temp. | 5000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23.8 A @ 120 Hz |
| Ripple Current @ High Frequency | 33.558 A @ 10 kHz |
| Impedance | - |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.504" Dia (89.00mm) |
| Height - Seated (Max) | 4.646" (118.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E37F401CPN822MFB7M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E37F351CPN822MFA5U | United Chemi-Con | CAP ALUM 8200UF 20% 350V SCREW | 92% | View |
| LNC2W822MSEHBB | Nichicon | CAP ALUM 8200UF 20% 450V SCREW | 90% | View |
| ALS70C822QM450 | KEMET | CAP ALUM 8200UF 20% 450V SCREW | 89% | View |
| B43456A4828M003 | EPCOS - TDK Electronics | CAP ALUM 8200UF 20% 350V SCREW | 89% | View |
| ALS71A822QW550 | KEMET | CAP ALUM 8200UF 20% 550V SCREW | 85% | View |
| ALS70H822NT550 | KEMET | CAP ALUM 8200UF 20% 550V SCREW | 80% | View |
Submit your RFQ for E37F401CPN822MFB7M and get a quote within 24 hours.
