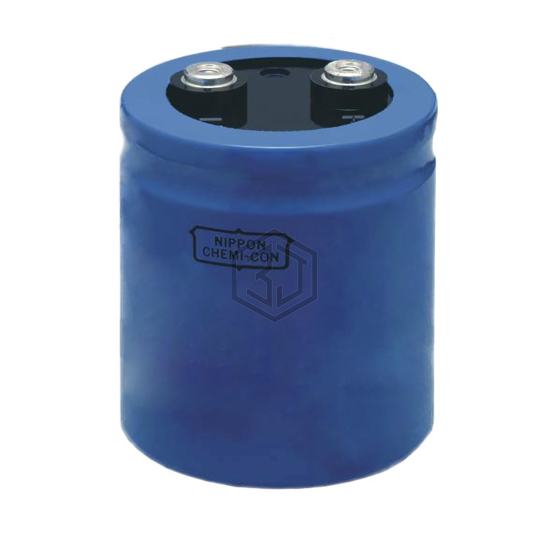

CAP ALUM 39000UF 20% 80V SCREW
E36D800LPN393MCA5M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 39000UF 20% 80V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 80 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,483
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 39000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 80 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D800LPN393MCA5M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D800HPN393MDB7U | United Chemi-Con | CAP ALUM 39000UF 20% 80V SCREW | 100% | View |
| E36D800LPC393MDA5U | United Chemi-Con | CAP ALUM 39000UF 20% 80V SCREW | 100% | View |
| 100LSW39000M77X141 | Rubycon | CAP ALUM 39000UF 20% 100V SCREW | 86% | View |
| E32D630HPN393MC92U | United Chemi-Con | CAP ALUM 39000UF 20% 63V SCREW | 85% | View |
| ALS71H393DB025 | KEMET | CAP ALUM 39000UF 20% 25V SCREW | 56% | View |
| E36D6R3LPN393TA41U | United Chemi-Con | CAP ALUM 39000UF 6.3V SCREW | 56% | View |
Submit your RFQ for E36D800LPN393MCA5M and get a quote within 24 hours.
