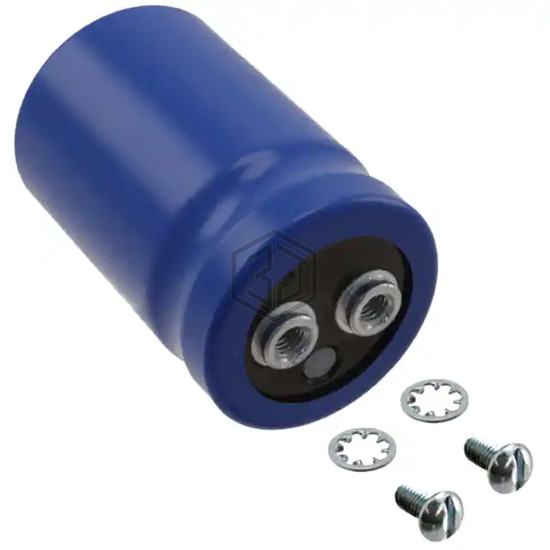

CAP ALUM 100UF 20% 500V SCREW
E36D501LPN101MA41M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100UF 20% 500V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 500 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,576
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 500 V |
| ESR (Equivalent Series Resistance) | 3.918Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 600 mA @ 120 Hz |
| Ripple Current @ High Frequency | 840 mA @ 3 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 1.625" (41.28mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D501LPN101MA41M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D501LPN101MA41U | United Chemi-Con | CAP ALUM 100UF 20% 500V SCREW | 100% | View |
| E36D451LPN101TA41U | Chemi-Con | CAP ALUM 100UF 450V SCREW CHAS M | 93% | View |
| E36D451HPN101TAA5U | Chemi-Con | CAP ALUM 100UF 450V SCREW CHAS M | 93% | View |
| CGS101T450R2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 450V SCREW | 71% | View |
| CG101T350R2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 100UF 350V SCREW | 68% | View |
| E36D301HPN101TU79U | Chemi-Con | CAP ALUM 100UF 300V SCREW CHAS M | 67% | View |
Submit your RFQ for E36D501LPN101MA41M and get a quote within 24 hours.
