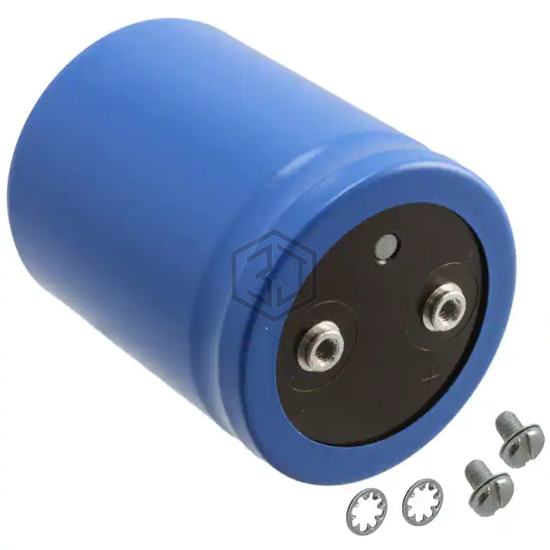

CAP ALUM 2200UF 20% 450V SCREW
E36D451HPN222MDA5M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 450V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 450 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,810
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 114.5mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.86 A @ 120 Hz |
| Ripple Current @ High Frequency | 9.604 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D451HPN222MDA5M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D501HPN222ME92U | United Chemi-Con | CAP ALUM 2200UF 20% 500V SCREW | 86% | View |
| MAL210285222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 350V SCREW | 80% | View |
| MAL210245222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 350V SCREW | 80% | View |
| LNC2W222MSEGBN | Nichicon | CAP ALUM 2200UF 20% 450V SCREW | 72% | View |
| MAL250026222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 400V SCREW | 61% | View |
| E36D201HPN222MC54U | United Chemi-Con | CAP ALUM 2200UF 20% 200V SCREW | 54% | View |
Submit your RFQ for E36D451HPN222MDA5M and get a quote within 24 hours.
