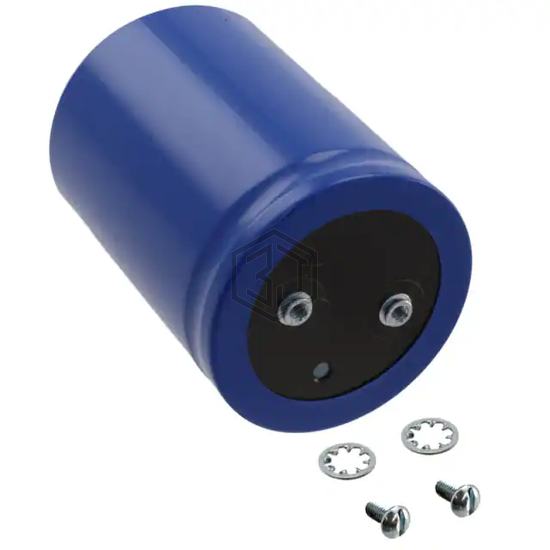

CAP ALUM 4700UF 20% 400V SCREW
E36D401CSS472MEA5M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 4700UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,834
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | 38.8mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11.06 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.484 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D401CSS472MEA5M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43761A9478M000 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 400V SCREW | 94% | View |
| E36D451HPN472TED0U | United Chemi-Con | CAP ALUM 4700UF 450V SCREW | 92% | View |
| E36D451CDN472MDE3U | United Chemi-Con | CAP ALUM 4700UF 20% 450V SCREW | 92% | View |
| CGS472T450X5L3PD | Cornell Dubilier Electronics (CDE) | CGS472T450X5L3PD | 92% | View |
| E37X401CPN472MEA5U | United Chemi-Con | CAP ALUM 4700UF 20% 400V SCREW | 90% | View |
| MAL210473472E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 4700UF 20% 250V SCREW | 80% | View |
Submit your RFQ for E36D401CSS472MEA5M and get a quote within 24 hours.
