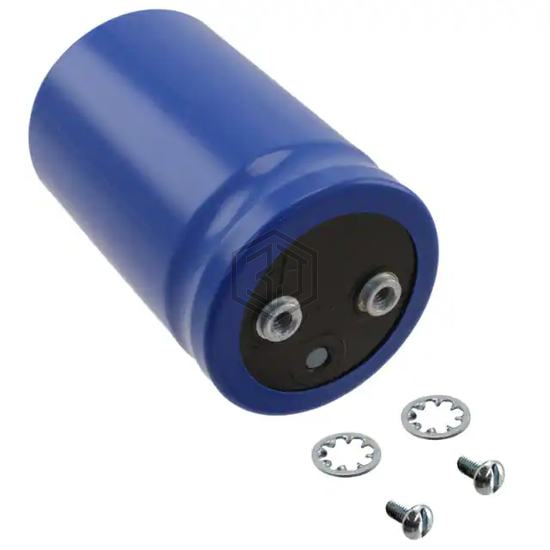

CAP ALUM 2200UF 20% 400V SCREW
E36D401CJN222MC92M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 400V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 400 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,933
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.625" (92.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D401CJN222MC92M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL250026222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 400V SCREW | 100% | View |
| LNY2G222MSEFBN | Nichicon | CAP ALUM 2200UF 20% 400V SCREW | 100% | View |
| LNC2W222MSEHBN | Nichicon | CAP ALUM 2200UF 20% 450V SCREW | 92% | View |
| LNU2H222MSEGBN | Nichicon | CAP ALUM 2200UF 20% 500V SCREW | 86% | View |
| LNC2H222MTEG | Nichicon | CAP ALUM 2200UF 20% 500V SCREW | 86% | View |
| B43724B7228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 550V SCREW | 80% | View |
Submit your RFQ for E36D401CJN222MC92M and get a quote within 24 hours.
