CAP ALUM 5600UF 20% 315V SCREW

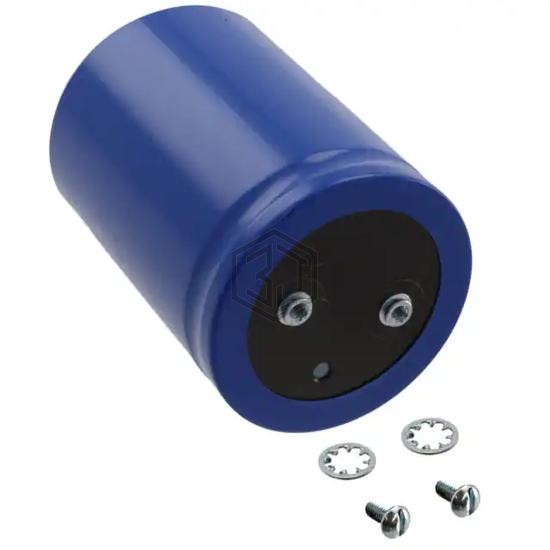

E36D3B1HPN562MEA5M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 5600UF 20% 315V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 315 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,279
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 5600 µF |
| Tolerance | ±20% |
| Voltage - Rated | 315 V |
| ESR (Equivalent Series Resistance) | 39.4mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.46 A @ 120 Hz |
| Ripple Current @ High Frequency | 14.644 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 1.250" (31.75mm) |
| Size / Dimension | 3.000" Dia (76.20mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D3B1HPN562MEA5M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D401LPN562TEE3U | United Chemi-Con | CAP ALUM 5600UF 400V SCREW | 85% | View |
| ALS80A562NP450 | KEMET | CAP ALUM 5600UF 20% 450V SCREW | 71% | View |
| LNC2V562MTEG | Nichicon | CAP ALUM 5600UF 20% 350V SCREW | 71% | View |
| B43458A5568M003 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 450V SCREW | 70% | View |
| ALS71H562NP500 | KEMET | CAP ALUM 5600UF 20% 500V SCREW | 63% | View |
| B43705A5568M050 | EPCOS - TDK Electronics | CAP ALUM 5600UF 20% 450V SCREW | 60% | View |
Submit your RFQ for E36D3B1HPN562MEA5M and get a quote within 24 hours.
