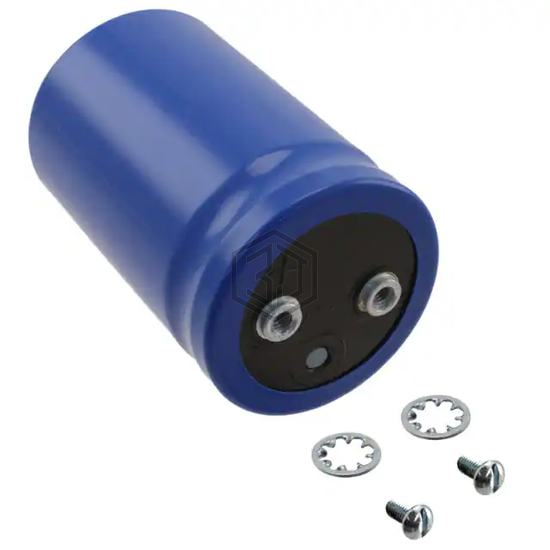

CAP ALUM 1500UF 350V SCREW
E36D351LPN152TC92M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 1500UF 350V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 350 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,013
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | -10%, +50% |
| Voltage - Rated | 350 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.625" (92.08mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D351LPN152TC92M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNY2G152MSEFBN | Nichicon | CAP ALUM 1500UF 20% 400V SCREW | 91% | View |
| 36D152F300CC2A | Vishay Sprague | CAP ALUM 1500UF 300V SCREW | 90% | View |
| LNC2W152MSEF | Nichicon | CAP ALUM 1500UF 20% 450V SCREW | 84% | View |
| LNY2W152MSEG | Nichicon | CAP ALUM 1500UF 20% 450V SCREW | 84% | View |
| LNY2W152MSEGBB | Nichicon | CAP ALUM 1500UF 20% 450V SCREW | 84% | View |
| MAL210487152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 450V SCREW | 84% | View |
Submit your RFQ for E36D351LPN152TC92M and get a quote within 24 hours.
