CAP ALUM 100000UF 20% 25V SCREW

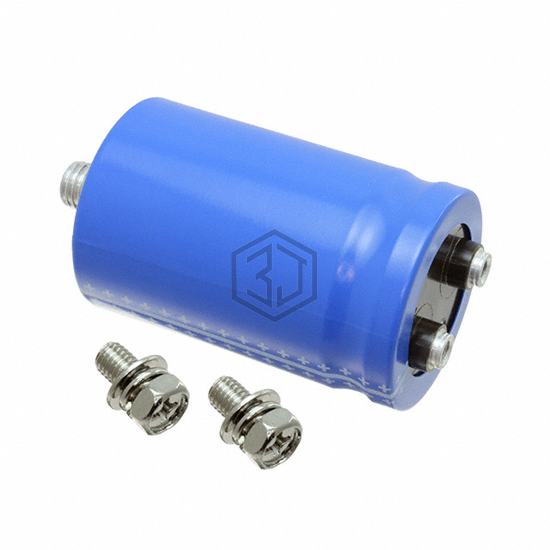

E36D250HLS104MC79M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,088
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 9.2mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10.84 A @ 120 Hz |
| Ripple Current @ High Frequency | 15.176 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 3.125" (79.38mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D250HLS104MC79M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNR1E104MSEN | Nichicon | CAP ALUM 100000UF 20% 25V SCREW | 95% | View |
| MAL210166104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100000UF 20% 25V SCREW | 81% | View |
| E36D350CHN104TDA5U | United Chemi-Con | CAP ALUM 100000UF 35V SCREW | 78% | View |
| CGS114U025X5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 110000UF 25V SCREW | 67% | View |
| MAL210656104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 100000UF 25V SCREW | 67% | View |
| ALS80C114QC040 | KEMET | CAP ALUM 110000UF 20% 40V SCREW | 61% | View |
