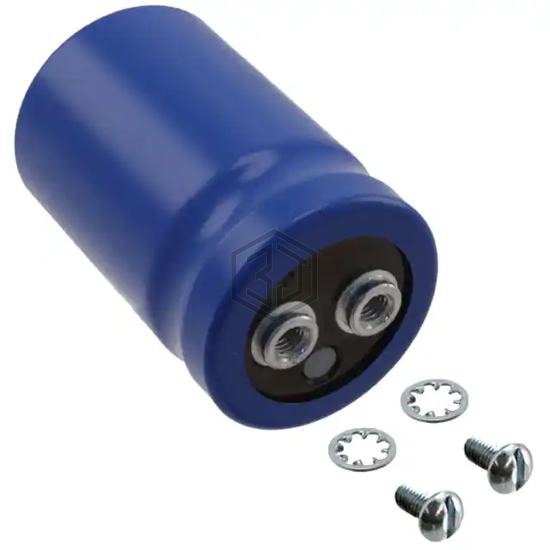

CAP ALUM 2200UF 20% 160V SCREW
E36D161HPN222MC48M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2200UF 20% 160V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 160 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,549
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 160 V |
| ESR (Equivalent Series Resistance) | 80.9mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.86 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.404 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 1.875" (47.63mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D161HPN222MC48M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D161HPN222MA67U | United Chemi-Con | CAP ALUM 2200UF 20% 160V SCREW | 96% | View |
| E36D201LPN222WCA5M | United Chemi-Con | CAP ALUM 2200UF 200V SCREW | 86% | View |
| CGS222U050R2C | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 50V SCREW | 77% | View |
| B43455A2228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 250V SCREW | 71% | View |
| MAL210213222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 250V SCREW | 56% | View |
| MAL210223222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 250V SCREW | 55% | View |
