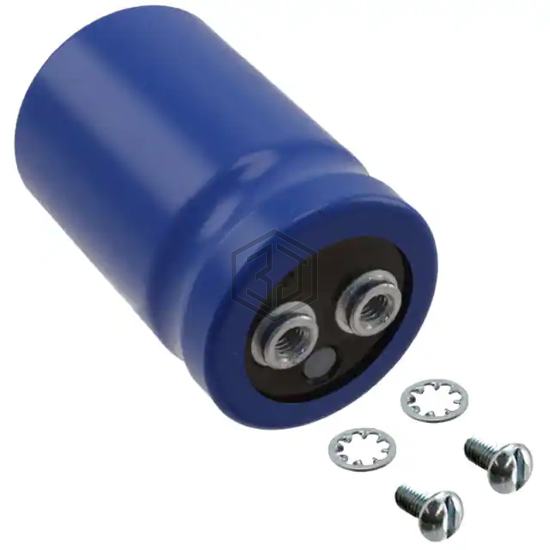

CAP ALUM 3900UF 20% 100V SCREW
E36D101HPN392MC48M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 3900UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,828
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3900 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 36.4mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.38 A @ 120 Hz |
| Ripple Current @ High Frequency | 6.132 A @ 3 kHz |
| Impedance | - |
| Lead Spacing | 0.875" (22.22mm) |
| Size / Dimension | 2.000" Dia (50.80mm) |
| Height - Seated (Max) | 1.875" (47.63mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E36D101HPN392MC48M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CGR392U075V4C3PL | Cornell Dubilier Electronics (CDE) | ALUMINUM ELECTROLYTIC CAPACITOR | 100% | View |
| 36D392F075BB2B | Vishay Sprague | CAP ALUM 3900UF 75V SCREW | 82% | View |
| E36D750HPN392TC79U | Chemi-Con | CAP ALUM 3.9MF 75V SCREW CHAS MT | 82% | View |
| E36D151HPN392MU67U | United Chemi-Con | CAP ALUM 3900UF 20% 150V SCREW | 74% | View |
| E36D161LPN392MAA5U | United Chemi-Con | CAP ALUM 3900UF 20% 160V SCREW | 72% | View |
| E36D451LPN392TEE3U | United Chemi-Con | CAP ALUM 3900UF 450V SCREW | 56% | View |
