CAP ALUM 100000UF 20% 50V SCREW

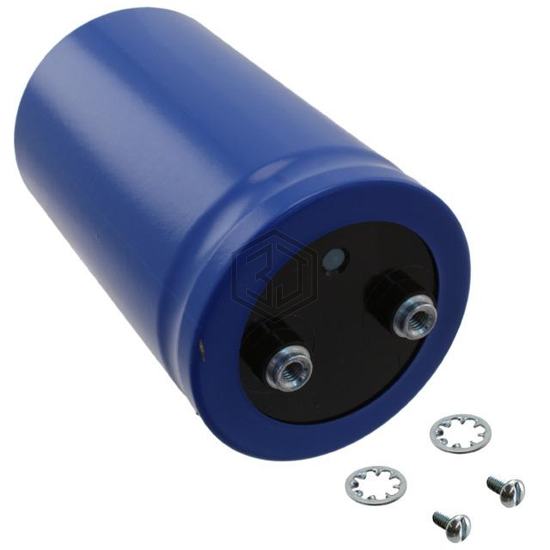

E32D500HPS104MDA5M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 100000UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,700
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 6.8mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 31.43 A @ 120 Hz |
| Ripple Current @ High Frequency | 35.2016 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 1.126" (28.60mm) |
| Size / Dimension | 2.500" Dia (63.50mm) |
| Height - Seated (Max) | 4.125" (104.78mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E32D500HPS104MDA5M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D500HPS104MDA5U | United Chemi-Con | CAP ALUM 100000UF 20% 50V SCREW | 100% | View |
| E32D630HPN104MDE3U | United Chemi-Con | CAP ALUM 100000UF 20% 63V SCREW | 92% | View |
| E32D350HPN104MCA5U | United Chemi-Con | CAP ALUM 100000UF 20% 35V SCREW | 78% | View |
| B41580A7100M000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 40V SCREW | 73% | View |
| B41560A7100M000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 20% 40V SCREW | 73% | View |
| 80LSW100000ACHU77X171 | Rubycon | CAP ALUM 100000UF 80V SCREW | 70% | View |
