CAP ALUM 33000UF 20% 50V SCREW

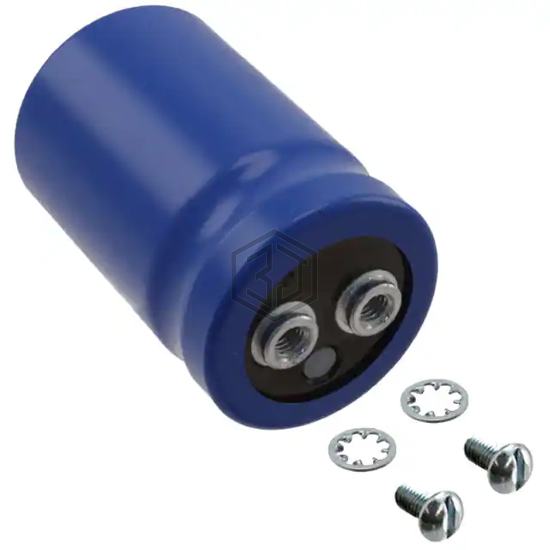

E32D500HPN333MAB7M is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 33000UF 20% 50V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,939
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | 12.5mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 17.22 A @ 120 Hz |
| Ripple Current @ High Frequency | 19.2864 A @ 50 kHz |
| Impedance | - |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.375" Dia (34.93mm) |
| Height - Seated (Max) | 4.625" (117.48mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
E32D500HPN333MAB7M is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D500HPN333TED0U | Chemi-Con | CAP ALUM 33MF 50V SCREW CHAS MT | 100% | View |
| ALS81G333NT200 | KEMET | CAP ALUM 33000UF 20% 200V SCREW | 66% | View |
| ALS80P333NT200 | KEMET | CAP ALUM 33000UF 20% 200V SCREW | 66% | View |
| LNT1K333MSEN | Nichicon | CAP ALUM 33000UF 20% 80V SCREW | 66% | View |
| ALS80H333QW200 | KEMET | CAP ALUM 33000UF 20% 200V SCREW | 60% | View |
| E32D201HPN333MEM9U | United Chemi-Con | CAP ALUM 33000UF 20% 200V SCREW | 56% | View |
Submit your RFQ for E32D500HPN333MAB7M and get a quote within 24 hours.
