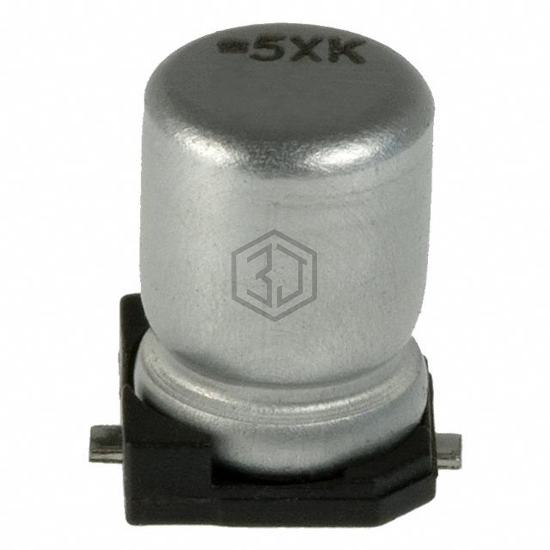

CAP ALUM 0.22UF 20% 50V SMD
BMVK500ADAR22MD60G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 0.22UF 20% 50V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 50 V, package / case Radial, Can - SMD.
In Stock: 6,970
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 0.22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 50 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
BMVK500ADAR22MD60G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UUA1HR22MCL1GS | Nichicon | CAP ALUM 0.22UF 20% 50V SMD | 100% | View |
| EEV-HB1HR22R | Panasonic Electronic Components | CAP ALUM 0.22UF 20% 50V SMD | 95% | View |
| EEE-HB1HR22R | Panasonic Electronic Components | CAP ALUM 0.22UF 20% 50V SMD | 95% | View |
| 50SKV0.22M4X5.5 | Rubycon | CAP ALUM 0.22UF 20% 50V SMD | 95% | View |
| EEE-HP1HR22R | Panasonic Electronic Components | CAP ALUM 0.22UF 20% 50V SMD | 95% | View |
| EEE-HA1HR33R | Panasonic Electronic Components | CAP ALUM 0.33UF 20% 50V SMD | 70% | View |
