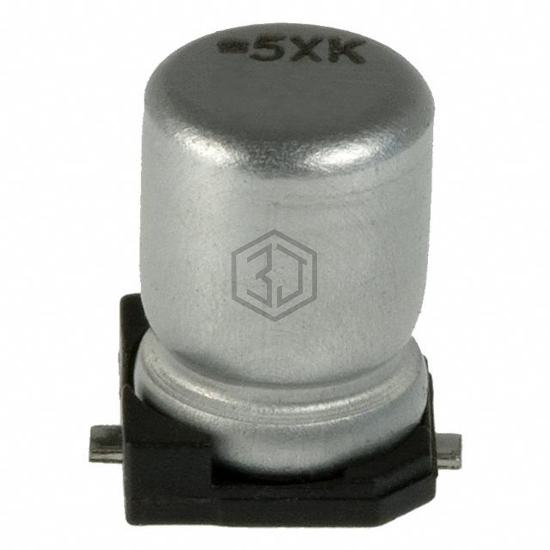

CAP ALUM 2.2UF 20% 35V SMD
BMVK350ADA2R2MD60G is a Aluminum Electrolytic Capacitors manufactured by United Chemi-Con. CAP ALUM 2.2UF 20% 35V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 4,362
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2.2 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Bi-Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.8 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.157" Dia (4.00mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.169" L x 0.169" W (4.30mm x 4.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 35NSKV2R2M4X5.5 | Rubycon | CAP ALUM 2.2UF 20% 35V SMD | 98% | View |
| UZT1H2R2MCL1GB | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 82% | View |
| UZG1H2R2MCL1GB | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 82% | View |
| MAL215371228E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2.2UF 20% 50V SMD | 81% | View |
| 865230640006 | Würth Elektronik | CAP ALUM 2.2UF 20% 50V SMD | 78% | View |
| UUQ1H2R2MCL1GB | Nichicon | CAP ALUM 2.2UF 20% 50V SMD | 78% | View |
Submit your RFQ for BMVK350ADA2R2MD60G and get a quote within 24 hours.
