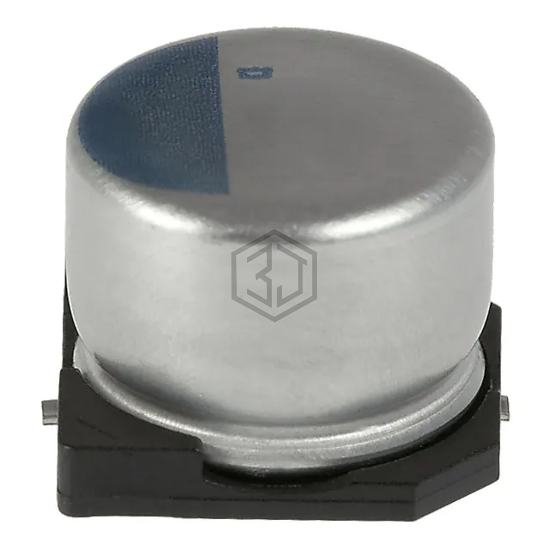

CAP ALUM POLY 82UF 20% 20V SMD
APXH200ARA820MJ80G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 82UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C, voltage - rated 20 V, package / case Radial, Can - SMD.
In Stock: 9,765
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.303" (7.70mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RKS1D820MCNAHFGS | Nichicon | CAP ALUM POLY 82UF 20% 20V SMD | 91% | View |
| PCX1E820MCL6GS | Nichicon | CAP ALUM POLY 82UF 20% 25V SMD | 83% | View |
| PCX1E820MCL1GS | Nichicon | CAP ALUM POLY 82UF 20% 25V SMD | 81% | View |
| A768EB826M1ELAE036 | KEMET | CAP ALUM POLY 82UF 20% 25V SMD | 70% | View |
| 6SVQP82M | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 6.3V SMD | 67% | View |
| PCR1H820MCL6GS | Nichicon | CAP ALUM POLY 82UF 20% 50V SMD | 65% | View |
Submit your RFQ for APXH200ARA820MJ80G and get a quote within 24 hours.
