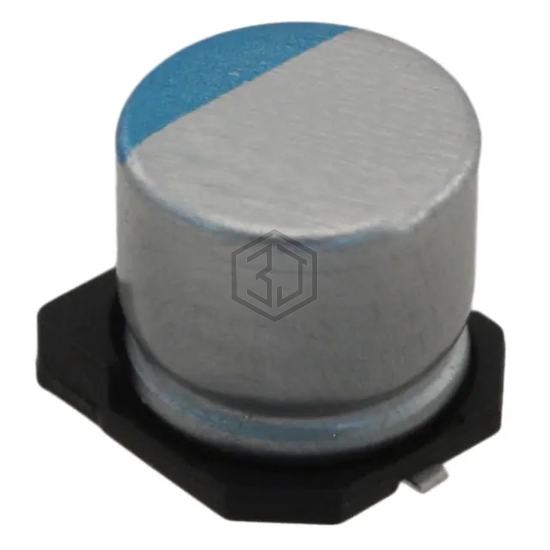

CAP ALUM POLY 330UF 20% 2.5V SMD
APXF2R5ARA331MF45G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 330UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 9,208
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2R5SVPE390MX | Panasonic Electronic Components | CAP ALUM POLY 390UF 20% 2.5V SMD | 97% | View |
| MAL218497254E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 330UF 20% 2.5V SMD | 96% | View |
| PCF0G331MCL1GS | Nichicon | CAP ALUM POLY 330UF 20% 4V SMD | 80% | View |
| MAL218497358E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 330UF 20% 4V SMD | 80% | View |
| APXE6R3ARA331MF61G | United Chemi-Con | CAP ALUM POLY 330UF 20% 6.3V SMD | 70% | View |
| VSU0J331MCB6357 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 68% | View |
Submit your RFQ for APXF2R5ARA331MF45G and get a quote within 24 hours.
