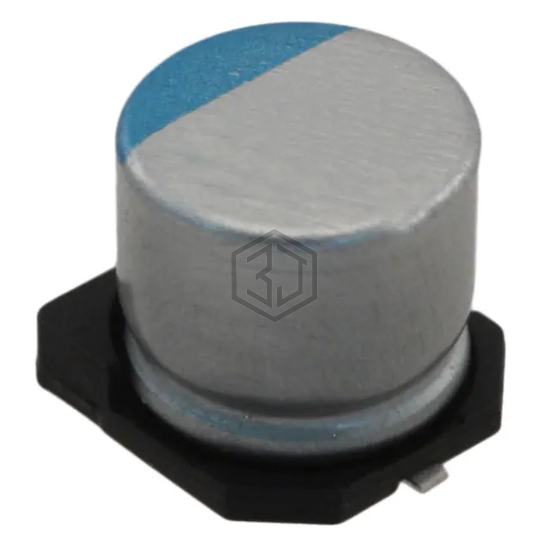

CAP ALUM POLY 680UF 20% 2V SMD
APXF2R0ARA681MF61G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 680UF 20% 2V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2 V, package / case Radial, Can - SMD.
In Stock: 1,903
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2R5SVP680M | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 2.5V SMD | 82% | View |
| RPS0G681MCN1GS | Nichicon | CAP ALUM POLY 680UF 20% 4V SMD | 69% | View |
| PCG1C681MCL1GS | Nichicon | CAP ALUM POLY 680UF 20% 16V SMD | 66% | View |
| APA1010681M016R | KYOCERA AVX | CAP ALUM POLY 680UF 20% 16V SMD | 66% | View |
| APXA4R0ARA681MJ80G | United Chemi-Con | CAP ALUM POLY 680UF 20% 4V SMD | 66% | View |
| APXF4R0ARA681MH80G | United Chemi-Con | CAP ALUM POLY 680UF 20% 4V SMD | 63% | View |
