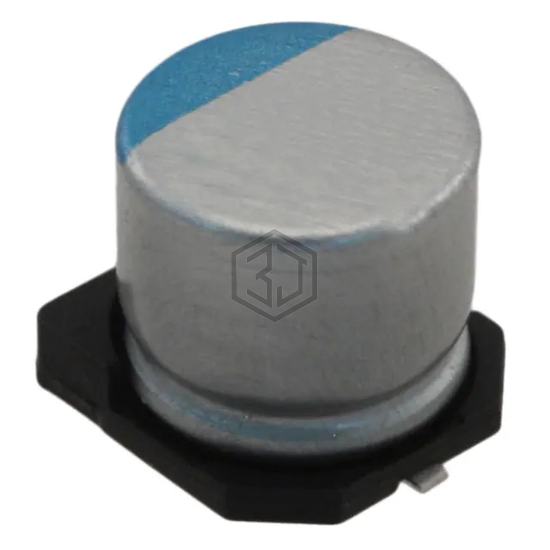

CAP ALUM POLY 120UF 20% 10V SMD
APXF100ARA121ME61G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 120UF 20% 10V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 10 V, package / case Radial, Can - SMD.
In Stock: 1,792
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 120 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.240" (6.10mm) |
| Surface Mount Land Size | 0.209" L x 0.209" W (5.30mm x 5.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXE100ARA121MF61G | United Chemi-Con | CAP ALUM POLY 120UF 20% 10V SMD | 99% | View |
| PVH-10V121MG70E-R2 | Elna America | CAP ALUM POLY 120UF 20% 10V SMD | 98% | View |
| PCF1D121MCL1GS | Nichicon | CAP ALUM POLY 120UF 20% 20V SMD | 69% | View |
| MAL218497559E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 120UF 20% 20V SMD | 65% | View |
| APD0811121M050R | KYOCERA AVX | CAP ALUM POLY 120UF 20% 50V SMD | 64% | View |
| PCX1D121MCS1GS | Nichicon | CAP ALUM POLY 120UF 20% 20V SMD | 61% | View |
