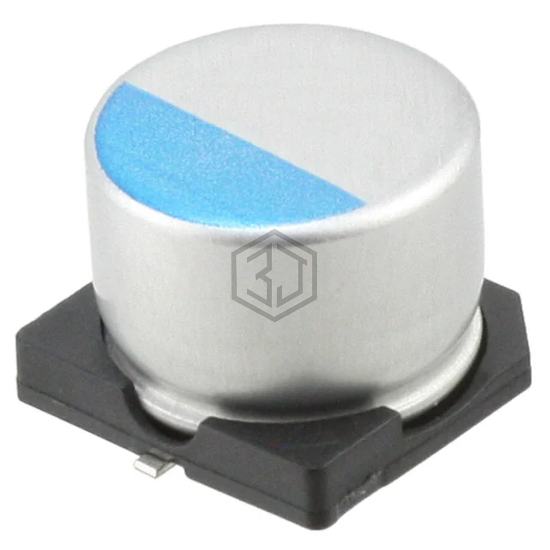

CAP ALUM POLY 1800UF 20% 4V SMD
APXE4R0ARA182MJC0G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 1800UF 20% 4V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can - SMD.
In Stock: 8,200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 1800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.6 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.480" (12.20mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCJ0G182MCL9GS | Nichicon | CAP ALUM POLY 1800UF 20% 4V SMD | 100% | View |
| A765MN188M0GLAE010 | KEMET | CAP ALUM POLY 1800UF 20% 4V SMD | 99% | View |
| PCJ0G182MCL1GS | Nichicon | CAP ALUM POLY 1800UF 20% 4V SMD | 99% | View |
| PCK0G182MCO1GS | Nichicon | CAP ALUM POLY 1800UF 20% 4V SMD | 98% | View |
| PCJ0G152MCL1GS | Nichicon | CAP ALUM POLY 1500UF 20% 4V SMD | 90% | View |
| PCJ0J182MCL1GS | Nichicon | CAP ALUM POLY 1800UF 6.3V SMD | 79% | View |
