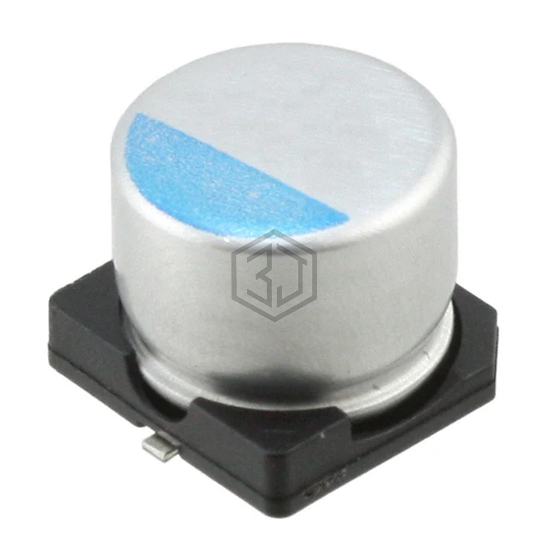

CAP ALUM POLY 680UF 20% 2.5V SMD
APXE2R5ARA681MH70G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 680UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 6,990
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 13mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.264" (6.70mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXF2R5ARA681MH70G | United Chemi-Con | CAP ALUM POLY 680UF 20% 2.5V SMD | 97% | View |
| 2R5SVPT680MX | Panasonic Electronic Components | CAP ALUM POLY 680UF 20% 2.5V SMD | 95% | View |
| MAL218097256E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 680UF 20% 2.5V SMD | 94% | View |
| APXH4R0ARA681MJ80G | United Chemi-Con | CAP ALUM POLY 680UF 20% 4V SMD | 77% | View |
| A765KN687M0GLAE012 | KEMET | CAP ALUM POLY 680UF 20% 4V SMD | 77% | View |
| PCJ1A681MCL1GS | Nichicon | CAP ALUM POLY 680UF 20% 10V SMD | 66% | View |
Submit your RFQ for APXE2R5ARA681MH70G and get a quote within 24 hours.
