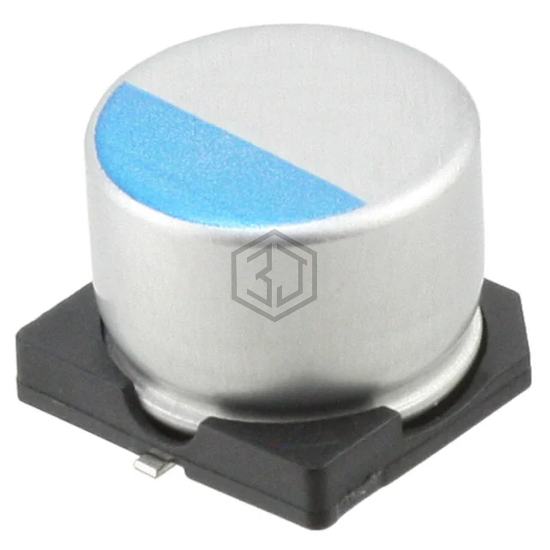

CAP ALUM POLY 2200UF 2.5V SMD
APXE2R5ARA222MJA0G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 2200UF 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 5,799
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.406" (10.30mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCJ0E222MCL1GS | Nichicon | CAP ALUM POLY 2200UF 2.5V SMD | 100% | View |
| MAL218497366E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 2200UF 20% 4V SMD | 80% | View |
| APA1012222M004R | KYOCERA AVX | CAP ALUM POLY 2200UF 20% 4V SMD | 80% | View |
| MAL218097711E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 2200UF 20% 4V SMD | 79% | View |
| PCJ0G222MCL1GS | Nichicon | CAP ALUM POLY 2200UF 20% 4V SMD | 79% | View |
| MAL218497315E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 2200UF 6.3V SMD | 71% | View |
Submit your RFQ for APXE2R5ARA222MJA0G and get a quote within 24 hours.
