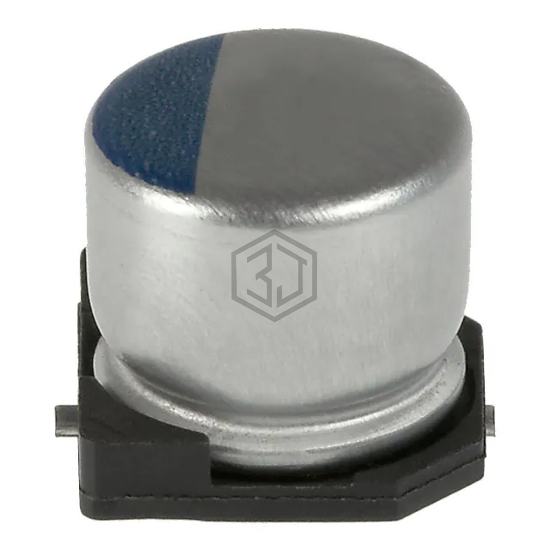

CAP ALUM POLY 39UF 20% 16V SMD
APXC160ARA390MF60G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 39UF 20% 16V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 3,013
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 39 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCJ1C390MCL1GS | Nichicon | CAP ALUM POLY 39UF 20% 16V SMD | 97% | View |
| APXA160ARA390MF60G | United Chemi-Con | CAP ALUM POLY 39UF 20% 16V SMD | 96% | View |
| APXA200ARA390MH70G | United Chemi-Con | CAP ALUM POLY 39UF 20% 20V SMD | 86% | View |
| RPS1H390MCN1GS | Nichicon | CAP ALUM POLY 39UF 20% 50V SMD | 71% | View |
| PCX1V390MCS1GS | Nichicon | CAP ALUM POLY 39UF 20% 35V SMD | 63% | View |
| PCR1H390MCL1GS | Nichicon | CAP ALUM POLY 39UF 20% 50V SMD | 53% | View |
Submit your RFQ for APXC160ARA390MF60G and get a quote within 24 hours.
