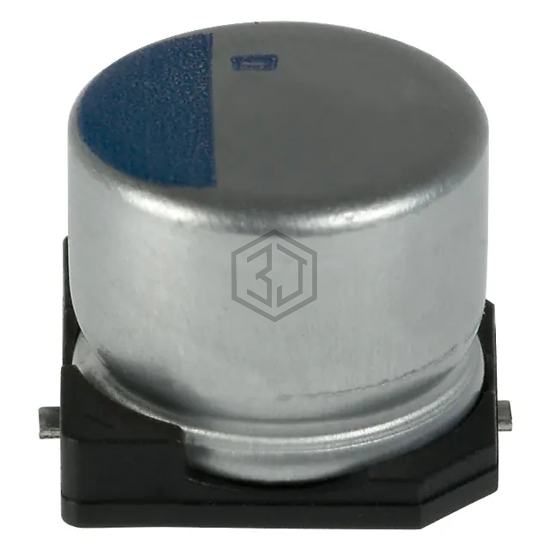

CAP ALUM POLY 390UF 20% 6.3V SMD
APXA6R3ARA391MHC0G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 390UF 20% 6.3V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 2,058
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 390 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.77 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCK0J391MCO1GS | Nichicon | CAP ALUM POLY 390UF 20% 6.3V SMD | 98% | View |
| RHA0J391MCN1GS | Nichicon | CAP ALUM POLY 390UF 20% 6.3V SMD | 98% | View |
| A766KE397M0JLAE022 | KEMET | CAP ALUM POLY 390UF 20% 6.3V SMD | 87% | View |
| PCJ1A391MCL1GS | Nichicon | CAP ALUM POLY 390UF 20% 10V SMD | 75% | View |
| 20SVPF390M | Panasonic Electronic Components | CAP ALUM POLY 390UF 20% 20V SMD | 70% | View |
| MAL218497613E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 390UF 20% 25V SMD | 67% | View |
Submit your RFQ for APXA6R3ARA391MHC0G and get a quote within 24 hours.
