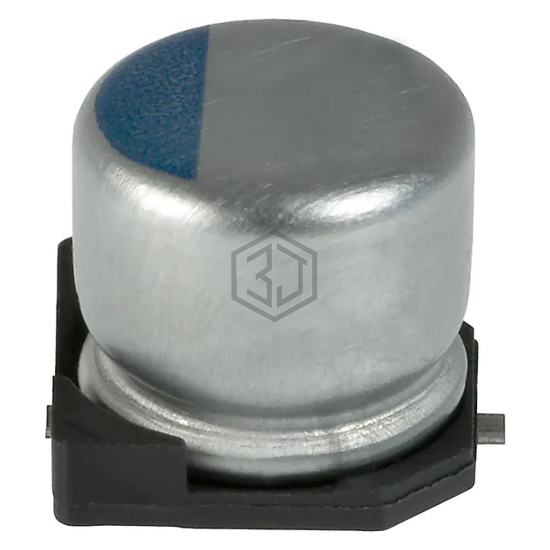

CAP ALUM POLY 220UF 20% 2.5V SMD
APXA2R5ARA221MF55G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 220UF 20% 2.5V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 4,041
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 25mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
APXA2R5ARA221MF55G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXH2R5ARA221MF60G | United Chemi-Con | CAP ALUM POLY 220UF 20% 2.5V SMD | 100% | View |
| PCG0G221MCL1GS | Nichicon | CAP ALUM POLY 220UF 20% 4V SMD | 73% | View |
| MAL218497409E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 220UF 20% 10V SMD | 70% | View |
| APXK6R3ARA221MF46G | United Chemi-Con | CAP ALUM POLY 220UF 20% 6.3V SMD | 63% | View |
| MAL218197306E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 220UF 20% 6.3V SMD | 63% | View |
| 6SVPA220MAA | Panasonic Electronic Components | CAP ALUM POLY 220UF 20% 6.3V SMD | 63% | View |
Submit your RFQ for APXA2R5ARA221MF55G and get a quote within 24 hours.
