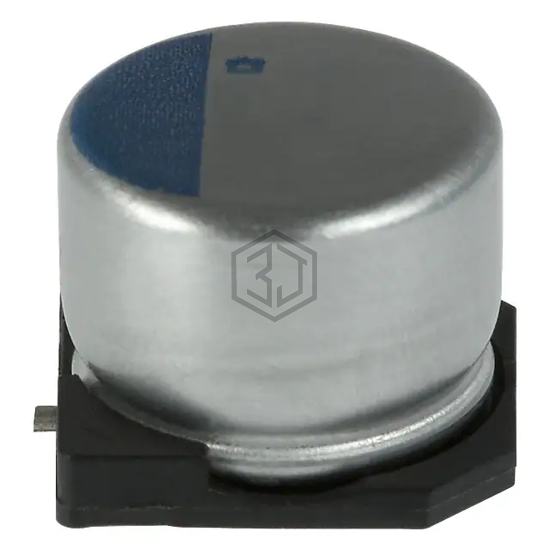

CAP ALUM POLY 10UF 20% 25V SMD
APXA250ARA100MF60G is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 10UF 20% 25V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 6,380
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 10 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 65mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 1.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.224" (5.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
APXA250ARA100MF60G is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXG250ARA100ME46G | United Chemi-Con | CAP ALUM POLY 10UF 20% 25V SMD | 96% | View |
| RSS1E100MCN1GS | Nichicon | CAP ALUM POLY 10UF 20% 25V SMD | 96% | View |
| 875105444001 | Würth Elektronik | CAP ALUM POLY 10UF 20% 20V SMD | 78% | View |
| 20SVP10M | Panasonic Electronic Components | CAP ALUM POLY 10UF 20% 20V SMD | 78% | View |
| PCF1D100MCL1GS | Nichicon | CAP ALUM POLY 10UF 20% 20V SMD | 74% | View |
| 875115752001 | Würth Elektronik | CAP ALUM POLY 10UF 20% 50V SMD | 71% | View |
Submit your RFQ for APXA250ARA100MF60G and get a quote within 24 hours.
