CAP ALUM POLY 47UF 20% 20V SMD

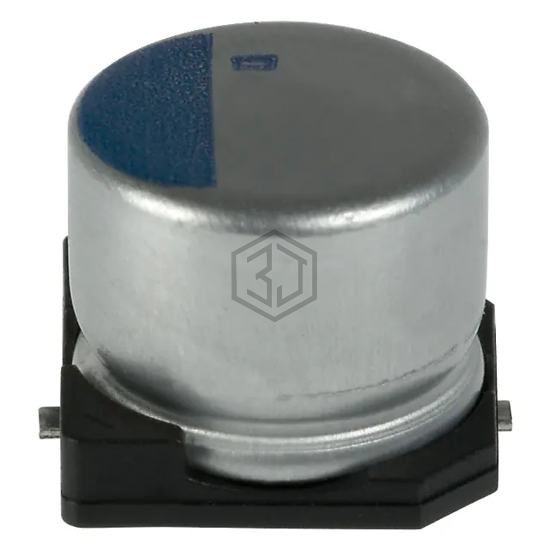

APXA200ARA470MH70S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 47UF 20% 20V SMD. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can - SMD.
In Stock: 4,434
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 47 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 45mOhm |
| Lifetime @ Temp. | 15000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.264" (6.70mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
APXA200ARA470MH70S is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PCF1D470MCL1GS | Nichicon | CAP ALUM POLY 47UF 20% 20V SMD | 100% | View |
| MAL218497511E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 47UF 20% 16V SMD | 91% | View |
| 875105344006 | Würth Elektronik | CAP ALUM POLY 47UF 20% 16V SMD | 88% | View |
| APA0809470M050R | KYOCERA AVX | CAP ALUM POLY 47UF 20% 50V SMD | 71% | View |
| 25SVPD47M | Panasonic Electronic Components | CAP ALUM POLY 47UF 20% 25V SMD | 66% | View |
| PCF1A470MCL6GS | Nichicon | CAP ALUM POLY 47UF 20% 10V SMD | 63% | View |
Submit your RFQ for APXA200ARA470MH70S and get a quote within 24 hours.
