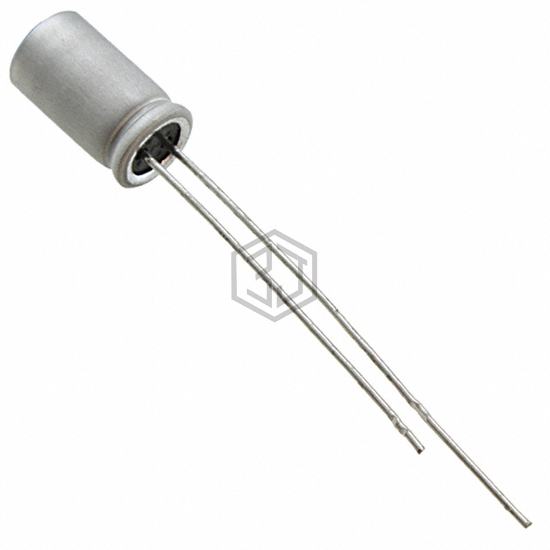

CAP ALUM POLY 470UF 20% 2.5V T/H
APSK2R5ELL471ME08S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 470UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 1,754
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 470 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 7mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.35 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 4SEP470M+T | Panasonic Electronic Components | CAP ALUM POLY 470UF 20% 4V T/H | 75% | View |
| APSE6R3ELL471MF08S | United Chemi-Con | CAP ALUM POLY 470UF 20% 6.3V T/H | 69% | View |
| RS80J471MDNASQPX | Nichicon | CAP ALUM POLY 470UF 20% 6.3V T/H | 67% | View |
| URP1C471MCT0811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 65% | View |
| PLF0J471MDO1 | Nichicon | CAP ALUM POLY 470UF 20% 6.3V T/H | 64% | View |
| RNE1C471MDNASQPX | Nichicon | CAP ALUM POLY 470UF 20% 16V T/H | 64% | View |
Submit your RFQ for APSK2R5ELL471ME08S and get a quote within 24 hours.
