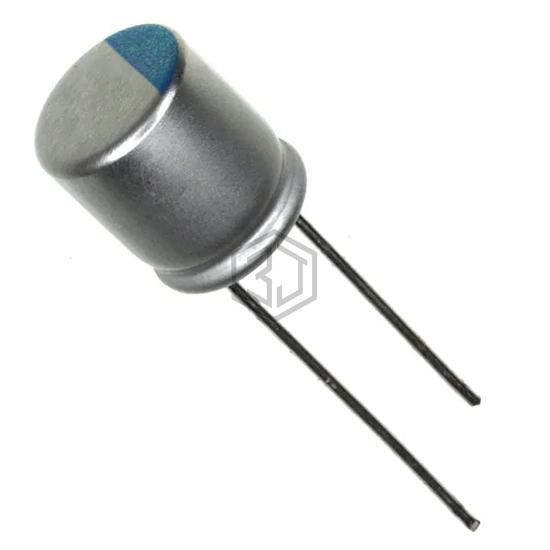

CAP ALUM POLY 270UF 20% 16V T/H
APSG160ELL271MF08S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 270UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 3,321
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 15mOhm |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.098" (2.50mm) |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RL81C271MDN1KX | Nichicon | CAP ALUM POLY 270UF 20% 16V T/H | 91% | View |
| APS-160ELL271MJC5S | United Chemi-Con | CAP ALUM POLY 270UF 20% 16V T/H | 91% | View |
| PLF1C271MDO1 | Nichicon | CAP ALUM POLY 270UF 20% 16V T/H | 90% | View |
| UPE1E271MNN0811U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 80% | View |
| 277ULR010MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 270UF 20% 10V T/H | 76% | View |
| 277ULR6R3MDY | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 270UF 20% 6.3V T/H | 71% | View |
