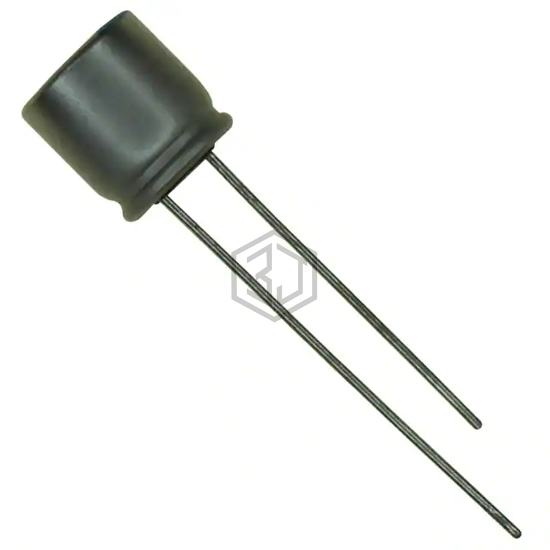

CAP ALUM POLY 560UF 20% 6.3V T/H
APSC6R3ELL561MH08S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 560UF 20% 6.3V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can.
In Stock: 2,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.7 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPS0J561MNN0808 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 100% | View |
| 567UER6R3MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 6.3V T/H | 94% | View |
| PLF0G561MCO6 | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 78% | View |
| UPR0G561MNN6308 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 75% | View |
| RL80E561MDNASQ | Nichicon | CAP ALUM POLY 560UF 20% 2.5V T/H | 69% | View |
| 16SEPF560M+TSS | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 16V T/H | 67% | View |
Submit your RFQ for APSC6R3ELL561MH08S and get a quote within 24 hours.
