CAP ALUM POLY 100UF 20% 25V T/H

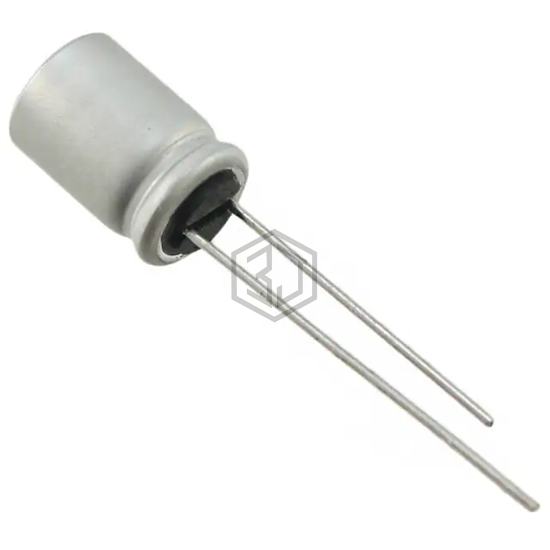

APS-250ETD101MJC5S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 100UF 20% 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 7,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 20mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 4.32 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RNS1D101MDN1PH | Nichicon | CAP ALUM POLY 100UF 20% 20V T/H | 89% | View |
| 20SEQP100M | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 20V T/H | 82% | View |
| RNS1C101MDN1KX | Nichicon | CAP ALUM POLY 100UF 20% 16V T/H | 78% | View |
| 870135373001 | Würth Elektronik | CAP ALUM POLY 100UF 20% 16V T/H | 78% | View |
| 20SEP100MX | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 20V T/H | 74% | View |
| PLX1V101MDL1 | Nichicon | CAP ALUM POLY 100UF 20% 35V T/H | 71% | View |
Submit your RFQ for APS-250ETD101MJC5S and get a quote within 24 hours.
