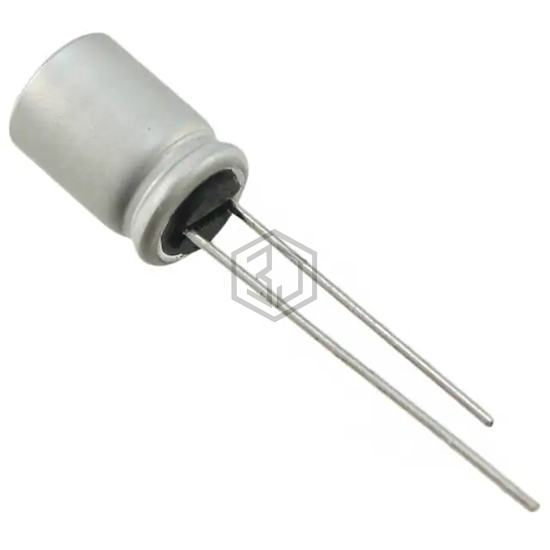

CAP ALUM POLY 100UF 20% 20V T/H
APS-200ELL101MHB5S is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 100UF 20% 20V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 4,776
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 24mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.32 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PLF1D101MDO2 | Nichicon | CAP ALUM POLY 100UF 20% 20V T/H | 100% | View |
| PLS1C101MDL4 | Nichicon | CAP ALUM POLY 100UF 20% 16V T/H | 85% | View |
| PLS1C101MDL4TD | Nichicon | CAP ALUM POLY 100UF 20% 16V T/H | 85% | View |
| URH1E101MP30808U | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 83% | View |
| 107UER016MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 100UF 20% 16V T/H | 81% | View |
| 16SEPC100MW | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 16V T/H | 80% | View |
Submit your RFQ for APS-200ELL101MHB5S and get a quote within 24 hours.
