CAP ALUM POLY 820UF 20% 4V T/H

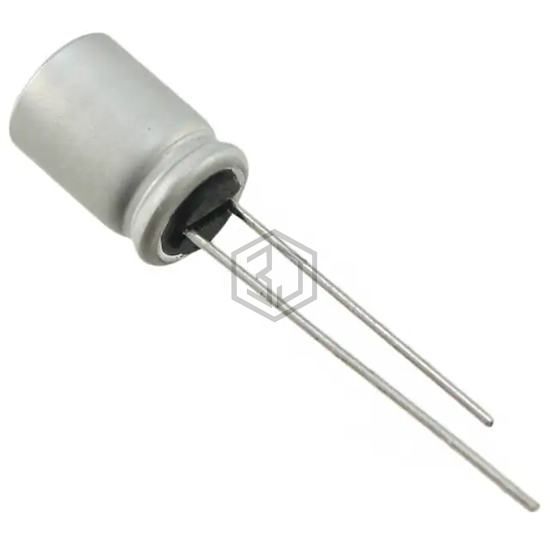

4PS820MJ12-T14 is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 820UF 20% 4V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 5,585
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 820 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 8mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
4PS820MJ12-T14 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 827ULR4R0MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 820UF 20% 4V T/H | 97% | View |
| PLS0J821MDO1 | Nichicon | CAP ALUM POLY 820UF 20% 6.3V T/H | 81% | View |
| PLG0J821MCO1TD | Nichicon | CAP ALUM POLY 820UF 20% 6.3V T/H | 80% | View |
| RL80J821MDNASQKX | Nichicon | CAP ALUM POLY 820UF 20% 6.3V T/H | 80% | View |
| RL80J821MDNASQPX | Nichicon | CAP ALUM POLY 820UF 20% 6.3V T/H | 80% | View |
| PLS0E821MCO6 | Nichicon | CAP ALUM POLY 820UF 20% 2.5V T/H | 79% | View |
