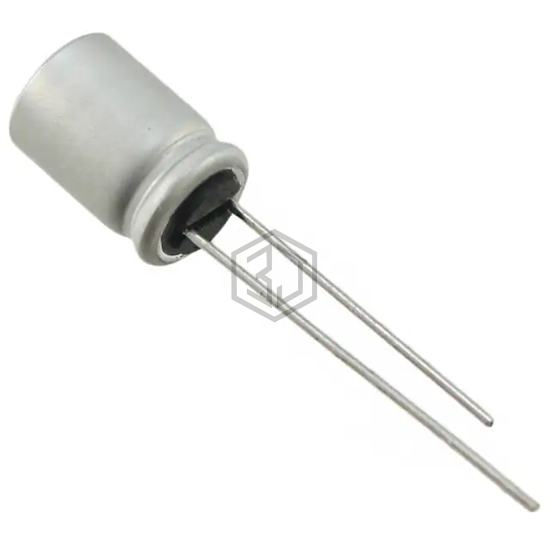

CAP ALUM POLY 560UF 20% 4V T/H
4PS560MH11-T15 is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 560UF 20% 4V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 4 V, package / case Radial, Can.
In Stock: 7,485
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 4 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.23 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
4PS560MH11-T15 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RL80G561MDNASQ | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 95% | View |
| 567ULR4R0MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 4V T/H | 95% | View |
| APSC4R0ELL561MH08S | United Chemi-Con | CAP ALUM POLY 560UF 20% 4V T/H | 95% | View |
| RL80J561MDN1KX | Nichicon | CAP ALUM POLY 560UF 20% 6.3V T/H | 78% | View |
| 567UER6R3MFF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 6.3V T/H | 78% | View |
| 567ULR2R5MEF | Cornell Dubilier / Illinois Capacitor | CAP ALUM POLY 560UF 20% 2.5V T/H | 76% | View |
Submit your RFQ for 4PS560MH11-T15 and get a quote within 24 hours.
