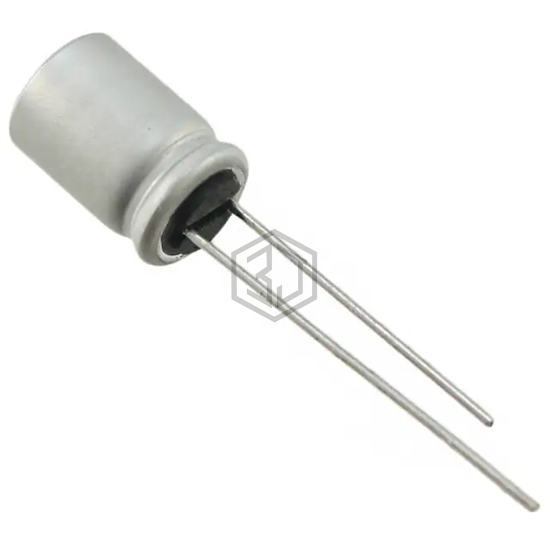

CAP ALUM POLY 680UF 20% 2.5V T/H
2R5PS680MH11 is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 680UF 20% 2.5V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can.
In Stock: 4,922
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 680 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.23 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.512" (13.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
2R5PS680MH11 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RR50E681MDN1KX | Nichicon | CAP ALUM POLY 680UF 20% 2.5V T/H | 92% | View |
| APSC4R0ELL681MHB5S | United Chemi-Con | CAP ALUM POLY 680UF 20% 4V T/H | 76% | View |
| UGV1E681MJ51012RU | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
| UPC1C681MP30811 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 69% | View |
| RL80J681MDN1 | Nichicon | CAP ALUM POLY 680UF 20% 6.3V T/H | 69% | View |
| A750KW687M1EAAE016 | KEMET | CAP ALUM POLY 680UF 20% 25V T/H | 68% | View |
Submit your RFQ for 2R5PS680MH11 and get a quote within 24 hours.
