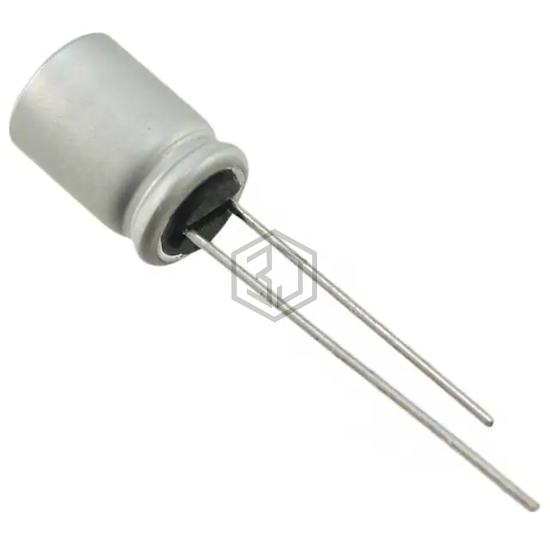

CAP ALUM POLY 330UF 20% 16V T/H
16PS330MBJ12 is a Aluminum - Polymer Capacitors manufactured by United Chemi-Con. CAP ALUM POLY 330UF 20% 16V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 8,616
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Polymer |
| Capacitance | 330 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 14mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.05 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
16PS330MBJ12 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RHT1C331MDN1PH | Nichicon | CAP ALUM POLY 330UF 20% 16V T/H | 98% | View |
| UPC1C331MNN6311F3 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 91% | View |
| 25SEPF330M | Panasonic Electronic Components | CAP ALUM POLY 330UF 20% 25V T/H | 81% | View |
| APSG250ELL331MJB5S | United Chemi-Con | CAP ALUM POLY 330UF 20% 25V T/H | 81% | View |
| URH1D331MNN6312 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 80% | View |
| RS80E331MDN1 | Nichicon | CAP ALUM POLY 330UF 20% 2.5V T/H | 68% | View |
