Union Semiconductor (HK) Limited

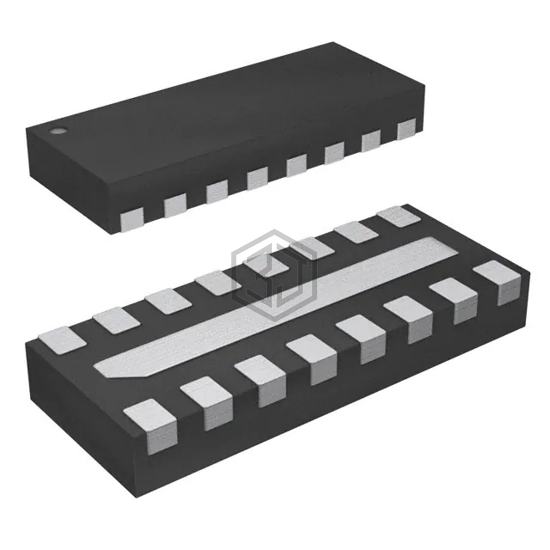

8-Line LC EMI Filter with TVS
UM8601 is a EMI/RFI Filters (LC, RC Networks) manufactured by Union Semiconductor (HK) Limited. 8-Line LC EMI Filter with TVS. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - rated 5V, package / case 16-WFDFN Exposed Pad.
In Stock: 10,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Low Pass |
| Filter Order | 3rd |
| Technology | LC (Pi) |
| Number of Channels | 8 |
| Center / Cutoff Frequency | 150MHz (Cutoff) |
| Attenuation Value | -24dB @ 800MHz, -41dB @ 2 ~ 5GHz |
| Resistance - Channel (Ohms) | 10 |
| Current | - |
| Values | L = 17nH, C = 15pF |
| ESD Protection | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | 5V |
| Mounting Type | Surface Mount |
| Package / Case | 16-WFDFN Exposed Pad |
| Size / Dimension | 0.157" L x 0.063" W (4.00mm x 1.60mm) |
| Height | 0.031" (0.80mm) |
Submit your RFQ for UM8601 and get a quote within 24 hours.
