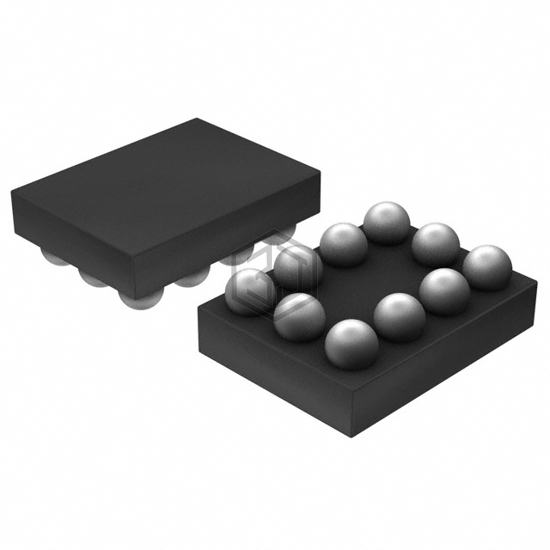

Union Semiconductor (HK) Limited
DUAL SPDT ANALOG SWITCH
UM4717 is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by Union Semiconductor (HK) Limited. DUAL SPDT ANALOG SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 10-WFBGA, CSPBGA, number of circuits 2.
In Stock: 9,393
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 3Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | 1.8V ~ 5.5V |
| Switch Time (Ton, Toff) (Max) | 80ns, 40ns |
| -3db Bandwidth | 300MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | - |
| Current - Leakage (IS(off)) (Max) | 500pA |
| Crosstalk | -70dB @ 10MHz |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 10-WFBGA, CSPBGA |
| Supplier Device Package | 10-CSP (1.86x1.36) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4717EBC+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPDT X 2 4.5OHM 12UCSP | 100% | View |
| MAX4737EUD+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 93% | View |
| MAX4737EUD+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14TSSOP | 93% | View |
| MAX4523EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 77% | View |
| MAX4521EEE+ | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16QSOP | 77% | View |
| ISL84521IBZ-T | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 77% | View |
Submit your RFQ for UM4717 and get a quote within 24 hours.
